INCH POUND
MIL-C-62/2D
18 December 2008
SUPERSEDING
MIL-C-62/2C
6 February 2004
MILITARY SPECIFICATION SHEET
CAPACITORS, FIXED, ELECTROLYTIC
(DC, ALUMINUM, DRY ELECTROLYTE, POLARIZED)
STYLES CE12 AND CE13
INACTIVE FOR NEW DESIGN
AFTER 1 JULY 1998
This specification sheet is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the capacitors described herein shall consist
of this document and the latest issue of specification MIL-C-62.

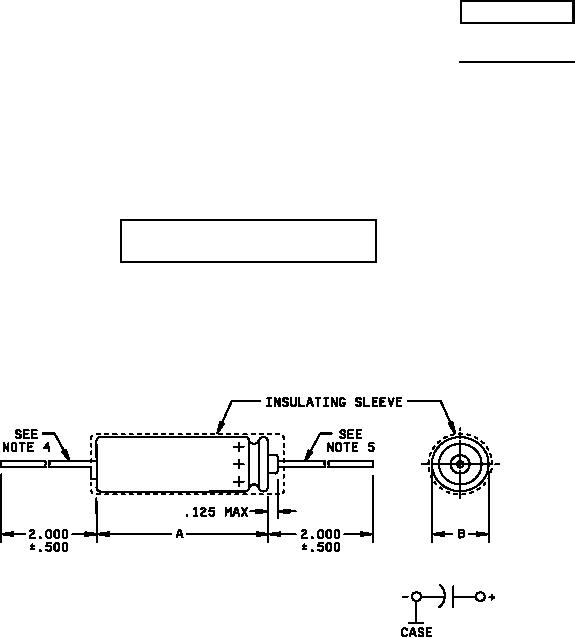

STYLES
CE12 - uninsulated
CE13 - insulated
Inches
mm
.125
3.18
.500
12.70
2.000
50.80
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Capacitors with a length of 1.625 inches (41.28 mm) or greater or a diameter of 0.750 inch (19.05 mm) or greater
are not intended to be mounted by there leads. They shall be provided with a supplementary means of mounting
such as a tangential bracket or wraparound bands. (Family 1 (see basic)).
4. The negative lead need not be offset.
5. Leads shall be .032 (.81 mm) .002 (.05 mm) (20 AWG) for units with a diameter of .625 (15.88 mm) or less and
.040 (1.02 mm) .002 (.05 mm) (18 AWG) for units with a diameter greater than .625 (15.88 mm).
AMSC N/A
FSC5910
