MIL-C-25/6E
NOTE: Permissible operating voltages, while based on incomplete data are the capacitor suppliers' best estimate to
provide a life expectancy of 8,800 hours of continuous operation at higher ambient temperatures. Longer life can be
expected by operation at voltages lower than indicated on the curve: For example, a life expectancy of 44,000 hours
may be obtained by operation at 70 percent of the voltage determined by use of this curve. Also, a life longer than
8,800 hours may be expected at the voltage determined by use of this curve if the high ambient temperature prevails
for only a portion of the whole operating time.

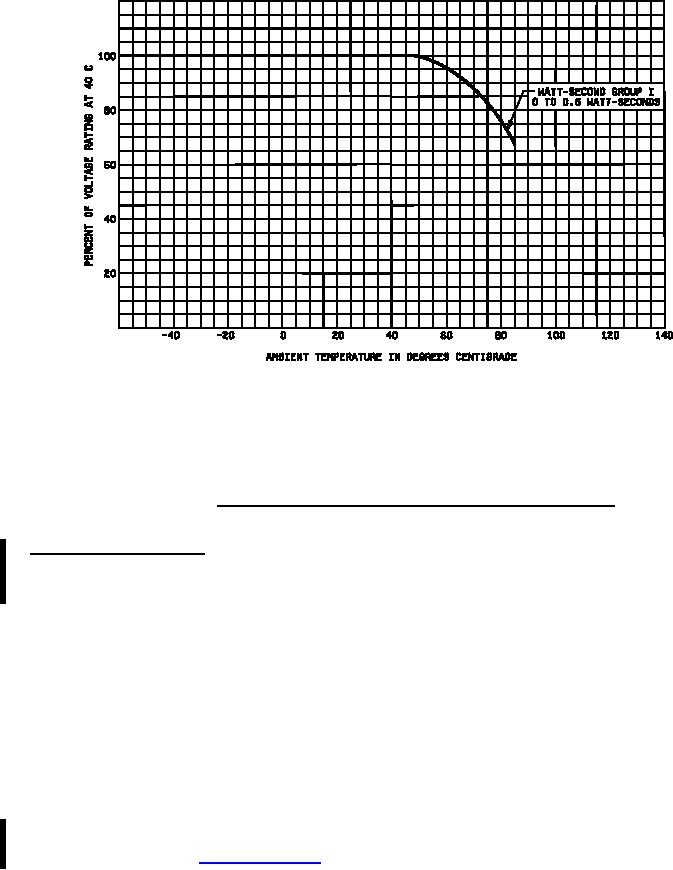

FIGURE 2. Voltage derating for ambient temperature (characteristics E and F).
Changes from previous issue. The margins of this specification are marked with vertical lines to indicate where
modifications from this revision were made. This was done as a convenience only and the Government assumes no
liability whatsoever for any inaccuracies in these notations. Bidders and contractors are cautioned to evaluate the
requirements of this document based on the entire content irrespective of the marginal notations.
Custodians:
Preparing activity:
Army - CR
DLA - CC
Navy - EC
Air Force - 85
(Project 5910-2011-028)
DLA - CC
Review activities:
Army - AR, MI
Navy - AS, OS
Air Force - 19, 99
NOTE: The activities listed above were interested in this document as of the date of this document. Since
organizations and responsibilities can change, you should verify the currency of the information above using the
ASSIST Online database at https://assist.dla.mil/
5
