INCH-POUND
MIL-C-11015/21F
14 May 2001
SUPERSEDING
MIL-C-11015/21E
10 July 1980
MILITARY SPECIFICATION SHEET
CAPACITORS, FIXED, CERAMIC DIELECTRIC (GENERAL PURPOSE),
STYLES CK64, CK65, CK66, CK67, CK68, and CK69
This specification is approved for use by all Depart-
ments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification and MIL-C-11015.
INACTIVE FOR NEW DESIGN AFTER 31 MARCH 1999.
FOR REPLACEMENT PURPOSES ONLY.
Inches
mm
.001
.03
.004
.10
.032
.81
.062
1.57
.375
9.53
1.250
31.75
NOTES:
Dimensions
Style
1. Dimensions are in inches.
L .040 (1.02)
T .040 (1.02)
2. Metric equivalents are in parentheses.
CK64
.730 (18.54)
.167 (4.24)
3. Metric equivalents are given for general information only.
CK65
.790 (20.07)
.167 (4.24)
4. Insulating coating shall not extend more than .125 (3.18
CK66
.890 (22.61)
.167 (4.24)
mm) along lead wires measured from a tangent to the
CK67
.950 (24.13)
.167 (4.24)
coating surface drawn perpendicular to the lead wires.
CK68
1.050 (26.67)
.330 (8.38)
CK69
1.110 (28.19)
.330 (8.38)

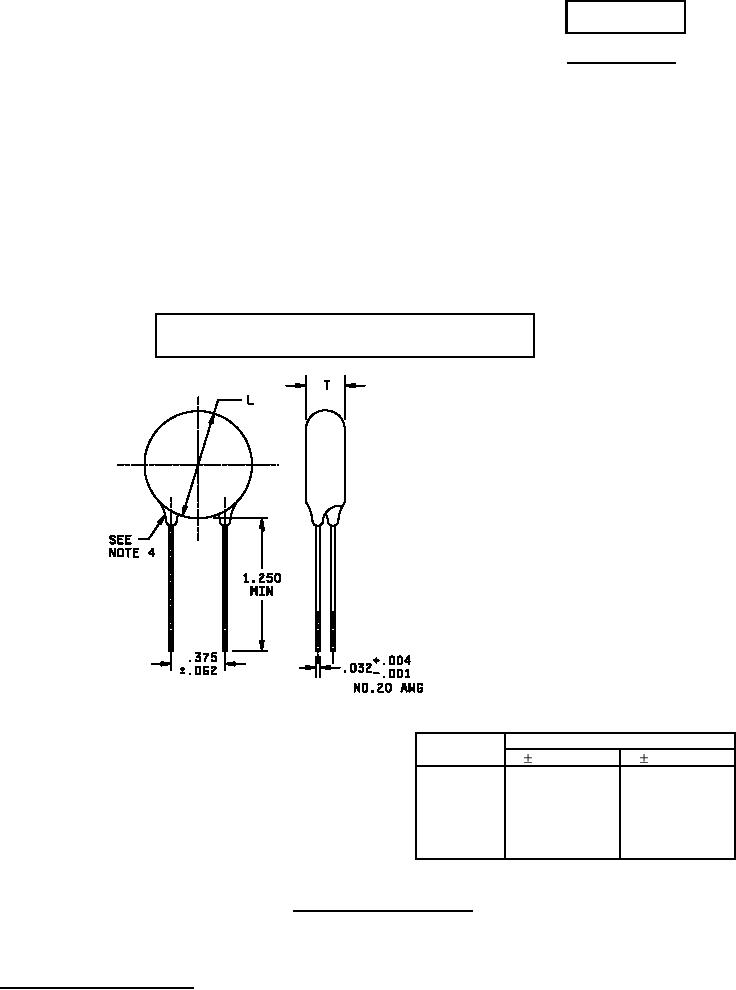

FIGURE 1. Dimensions and configuration.
AMSC N/A
1 of 4
FSC 5910
