INCH-POUND
MIL-PRF-87164/4A
24 May 1999
SUPERSEDING
MIL-C-87164/4
23 June 1986
PERFORMANCE SPECIFICATION SHEET
CAPACITORS, FIXED, MICA DIELECTRIC, HIGH RELIABILITY,
STYLE CMS07
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification and MIL-PRF-87164.
Capacitance (pF)
L
T
W
Min 1/
Max
Min 1/
Max
Max
.900 (22.86)
.300 (7.62)
.190 (4.83)
.810 (20.57)
.720 (18.29)
3,000 to 3,900 inclusive
.900 (22.86)
.310 (7.87)
.200 (5.08)
.820 (20.83)
.720 (18.29)
4,300 to 4,700 inclusive
.900 (22.86)
.320 (8.13)
.210 (5.33)
.820 (20.83)
.720 (18.29)
5,100
.910 (23.11)
.330 (8.38)
.220 (5.59)
.820 (20.83)
.730 (18.54)
5,600 to 6,200 inclusive
.910 (23.11)
.340 (8.64)
.230 (5.84)
.820 (20.83)
.730 (18.54)
6,800
.920 (23.36)
.350 (8.89)
.240 (6.10)
.830 (21.08)
.730 (18.54)
7,500
.920 (23.36)
.360 (9.14)
.250 (6.35)
.830 (21.08)
.730 (18.54)
8,200
.930 (23.62)
.370 (9.40)
.260 (6.60)
.830 (21.08)
.730 (18.54)
9,100
.930 (23.62)
.380 (9.65)
.270 (6.86)
.840 (21.33)
.730 (18.54)
10,000
.940 (23.87)
.390 (9.91)
.280 (7.11)
.840 (21.33)
.740 (18.80)
11,000
.940 (23.87)
.400 (10.16)
.290 (7.37)
.850 (21.59)
.740 (18.80)
12,000
.940 (23.87)
.420 (10.67)
.300 (7.62)
.850 (21.59)
.740 (18.80)
13,000
.940 (23.87)
.430 (10.92)
.330 (8.38)
.850 (21.59)
.740 (18.80)
15,000
.940 (23.87)
.450 (11.43)
.340 (8.64)
.860 (21.84)
.740 (18.80)
16,000
.950 (24.13)
.470 (11.94)
.360 (9.14)
.870 (22.10)
.750 (19.05)
18,000
.960 (24.38)
.490 (12.45)
.380 (9.65)
.870 (22.10)
.750 (19.05)
20,000
.970 (24.63)
.520 (13.21)
.400 (10.16)
.880 (22.35)
.760 (19.30)
22,000
1/ Minimum dimensions are listed for information only.
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are in parentheses.
3. This dimension may not be solderable as it may be covered by a clear epoxy coating.

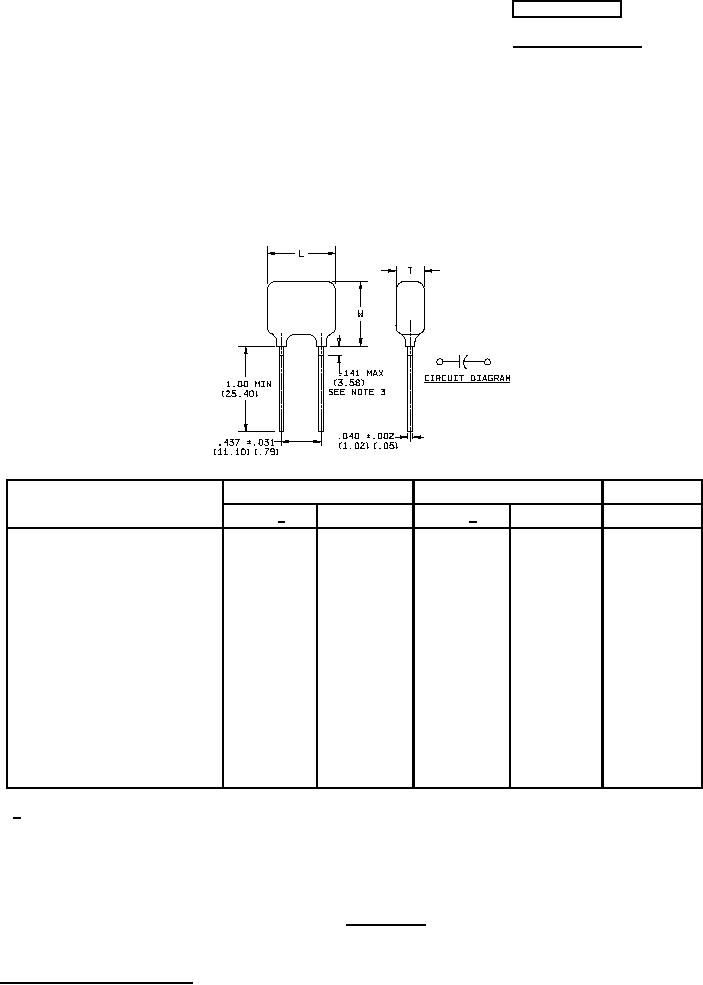

FIGURE 1. Style CMS07.
AMSC N/A
1 of 3
FSC 5910
DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited.
