PERFORMANCE SPECIFICATION SHEET
CAPACITORS, FIXED, MICA DIELECTRIC, HIGH RELIABILITY,
STYLE CMS04
This specification is approved for use by all Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein
shall consist of this specification and MIL-PRF-87164.
Capacitance (pF)
L
T
W
Min 1/
Max
Min 1/
Max
Max
.350 (8.89)
.190 (4.83)
.100 (2.54)
.370 (9.40)
.300 (7.62)
1 to 24 inclusive
.350 (8.89)
.190 (4.83)
.100 (2.54)
.370 (9.40)
.300 (7.62)
27
.350 (8.89)
.200 (5.08)
.100 (2.54)
.380 (9.65)
.300 (7.62)
30 to 68 inclusive
.360 (9.14)
.210 (5.33)
.100 (2.54)
.380 (9.65)
.300 (7.62)
75
.360 (9.14)
.210 (5.33)
.100 (2.54)
.380 (9.65)
.300 (7.62)
82
.370 (9.40)
.210 (5.33)
.100 (2.54)
.390 (9.91)
.300 (7.62)
91 and 100
.380 (9.65)
.220 (5.59)
.100 (2.54)
.390 (9.91)
.300 (7.62)
110 and 120
.380 (9.65)
.220 (5.59)
.100 (2.54)
.390 (9.91)
.300 (7.62)
130
.380 (9.65)
.230 (5.84)
.110 (2.79)
.390 (9.91)
.300 (7.62)
150 and 160
.390 (9.91)
.230 (5.84)
.120 (3.05)
.400 (10.16)
.300 (7.62)
180
.390 (9.91)
.240 (6.10)
.120 (3.05)
.400 (10.16)
.300 (7.62)
200
1/ Minimum dimensions are listed for information only.
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are in parentheses.
3. This dimension may not be solderable as it may be covered by a clear epoxy coating.

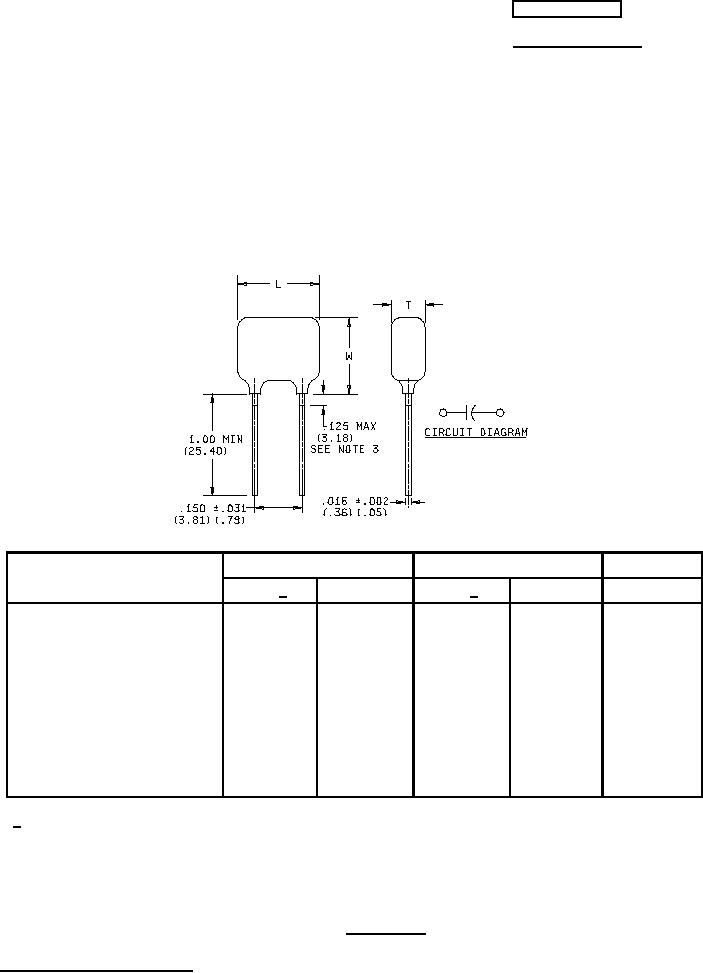

FIGURE 1. Style CMS04.
