MIL-PRF-81/4F
Inches
mm
Inches
mm
.003
.08
.08
2.03
.01
.25
.100
2.54
.012
.30
.115
2.92
.015
.38
.130
3.30
.025
.64
.145
3.68
.030
.76
.150
3.81
.032
.81
.300
7.62
.040
1.02
.31
7.87
.046
1.17
.37
9.40
.05
1.27
.39
9.91
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are ±.02 (0.51 mm) for two-place decimals and ±.010 (0.25 mm) for
three-place decimals.

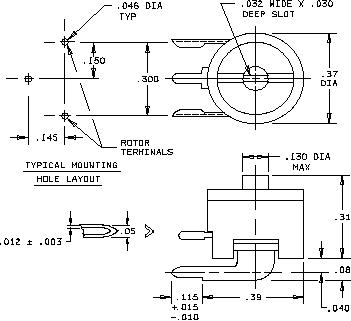

Style CV32
FIGURE 1. Dimensions and configurations - Continued.
2
