INCH-POUND
MIL-PRF-55514/9C
6 September 2013
SUPERSEDING
MIL-PRF-55514/9B
18 October 2005
PERFORMANCE SPECIFICATION SHEET
CAPACITORS, FIXED, METALLIZED PLASTIC DIELECTRIC, DC,
IN NONMETAL CASES, ESTABLISHED RELIABILITY,
STYLE CFR13 AND CFR14
This specification sheet is approved for use by all Departments and
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-PRF-55514.

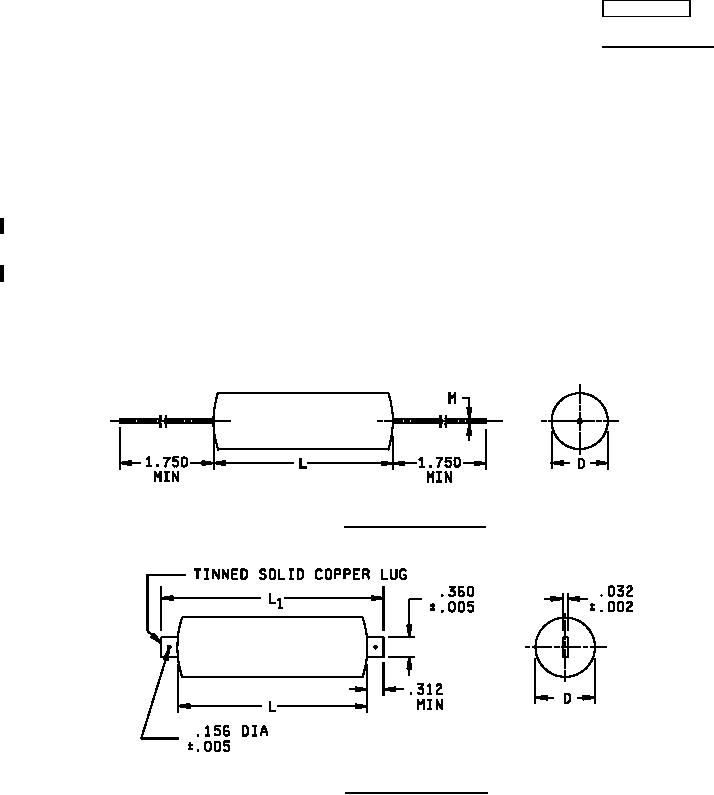

FIGURE 1. Style CFR13 capacitors.
FIGURE 2. Style CFR14 capacitors.
Inches
mm
.002
0.05
NOTES:
.005
0.13
1. Dimensions are in inches.
.032
0.81
2. Metric equivalents are given for general information only.
.156
3.96
.312
7.93
.360
9.14
1.750
44.45
AMSC N/A
FSC 5910
