INCH-POUND
MIL-PRF-55514/11C
21 February 2002
SUPERSEDING
MIL-PRF-55514/11B
9 October 1997
PERFORMANCE SPECIFICATION SHEET
CAPACITORS, FIXED, METALLIZED PLASTIC DIELECTRIC, DC,
IN NONMETAL CASES, ESTABLISHED RELIABILITY,
STYLES CFR26 AND CFR27
The specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification and MIL-PRF-55514.
Inches
mm
.002
0.05
.005
0.13
NOTES:
.030
0.76
1. Dimensions are in inches.
.156
3.96
2. Metric equivalents are given for general information.
.180
4.57
3. Unless otherwise specified, tolerance is ±.010 (0.25 mm).
.218
5.54
.360
9.14
4. These capacitors are to be mounted by screws.
.500
12.70

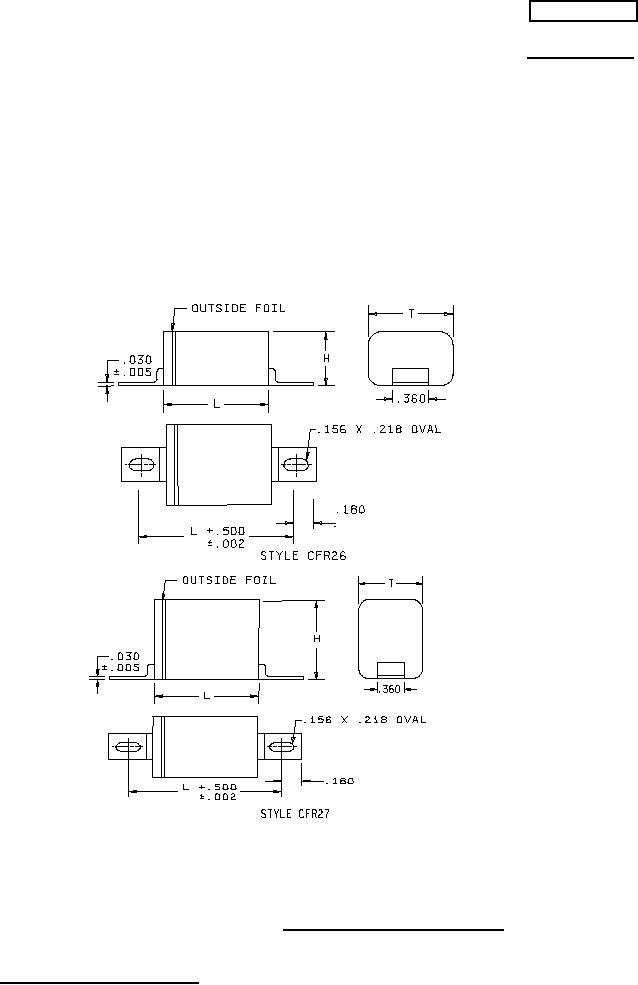

FIGURE 1. Styles CFR26 and CFR27 capacitors.
AMSC N/A
1 of 4
FSC 5910
