INCH-POUND
MIL-PRF-49137/1D
19 February 2009
SUPERSEDING
MIL-PRF-49137/1C
22 April 2004
PERFORMANCE SPECIFICATION SHEET
CAPACITORS, FIXED, ELECTROLYTIC (SOLID ELECTROLYTE),
TANTALUM, POLAR, MOLDED, NONHERMETICALLY SEALED,
STYLE CX01
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of
this specification and MIL-PRF-49137.
CIRCUIT DIAGRAM
Dimensions
Lead size
Case
Diameter D
Length L
.020 (0.51)
.020 (0.51)
size
Dia.
AWG
.020 .0015
A
.120
.310
(0.51 .040)
(3.05)
(7.87)
24
,025 .002
B
.200
.400
(0.64 .05)
(5.08)
(10.16)
22, 24
.025 .002
C
.220
.560
(0.64 .05)
(5.59)
(14.22)
22, 24
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Metric equivalents are in parentheses.

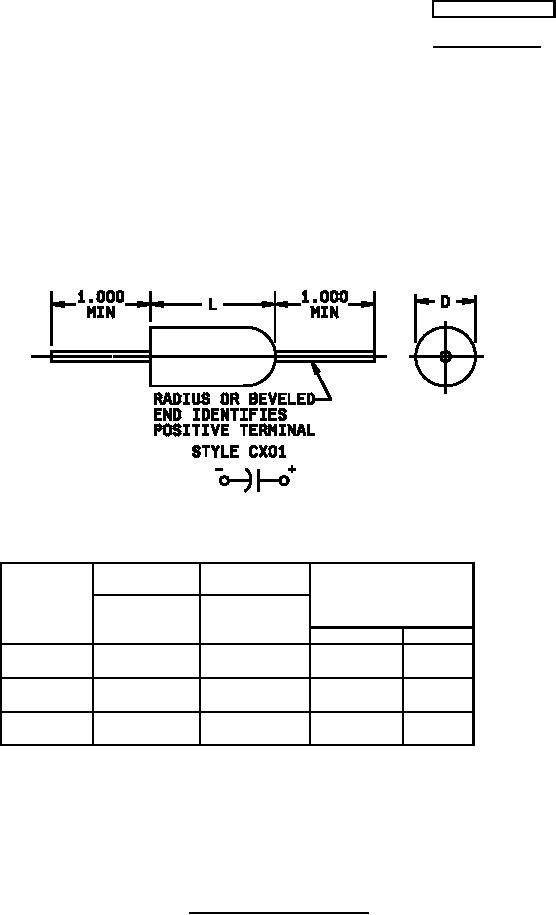

FIGURE 1. Dimensions and configuration.
AMSC N/A
FSC 5910
