INCH-POUND
MIL-PRF-39018/3G
20 February 2009
SUPERSEDING
MIL-PRF-39018/3F
24 April 2007
PERFORMANCE SPECIFICATION SHEET
CAPACITORS, FIXED, ELECTROLYTIC (ALUMINUM OXIDE)
(POLARIZED), NON-ESTABLISHED RELIABILITY AND ESTABLISHED RELIABILITY
STYLES CU16 (UNINSULATED), CU17 (INSULATED), AND CUR17 (INSULATED)
STYLE CU16 INACTIVE FOR
DESIGN AFTER 23 MARCH 1972
This specification is approved for use by all Depart-
ments and Agencies of the Department of Defense.
The requirements for acquiring the capacitors described herein shall consist
of this specification sheet and MIL-PRF-39018.
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only and are based upon 1.00 inch = 25.4 mm.
3. These capacitors are not intended to be mounted by their leads.
4. For .625 diameter case, the leads shall be .032 +.008, -.002 diameter and for all other diameter cases the
leads shall be .040 +.008, -.002 diameter.
5. The "D" dimensions for styles CU17 and CUR17 shall be not more than .008 (0.20 mm) larger than the
specified bare case diameter.

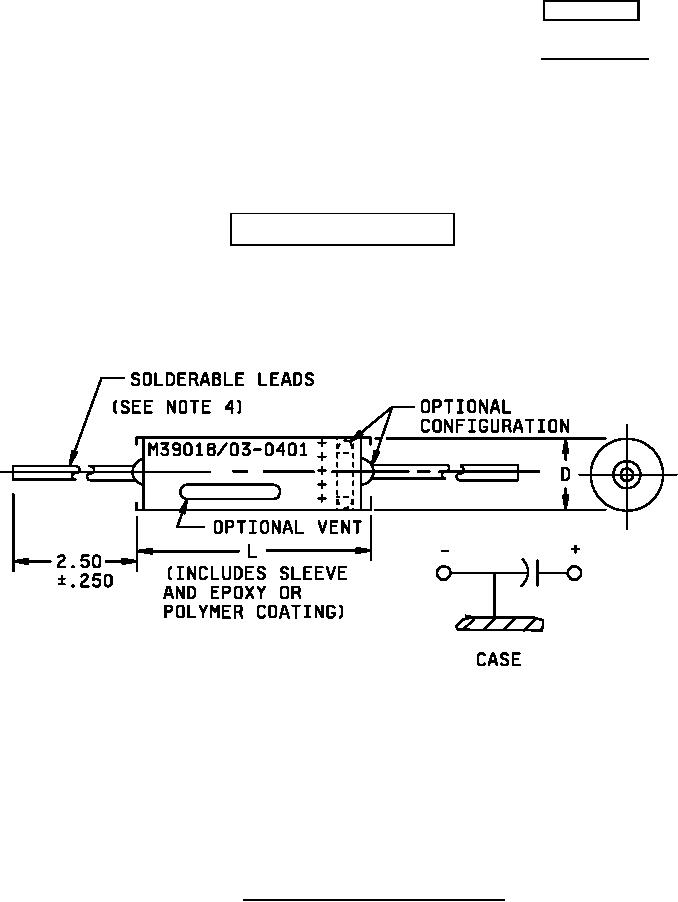

FIGURE 1. Styles CU16, CU17, and CUR17 capacitors.
AMSC N/A
FSC 5910
