INCH-POUND
MIL-PRF-20/29E
21 April 2011
SUPERSEDING
MIL-PRF-20/29D
21 June 2001
PERFORMANCE SPECIFICATION SHEET
CAPACITORS, FIXED, CERAMIC DIELECTRIC
(TEMPERATURE COMPENSATING),
ESTABLISHED AND NON-ESTABLISHED RELIABILITY,
STYLES CCR77 AND CC77
CC77 is inactive for new design after
26 March 1984. Use CCR77
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the capacitors described herein
shall consist of this specification sheet and MIL-PRF-20.
Inches
mm
.010
0.25
NOTES:
.140
3.56
1. Dimensions are in inches.
.390
9.91
2. Metric equivalents are given for general information only.
1.250
31.75
3. Lead diameter shall be .015 (0.38 mm) to .027 (0.69 mm).
4. Lead length may be a minimum of 1.00 inch (25.4 mm) long for use in
tape and reel packaging, when specified in the ordering data.

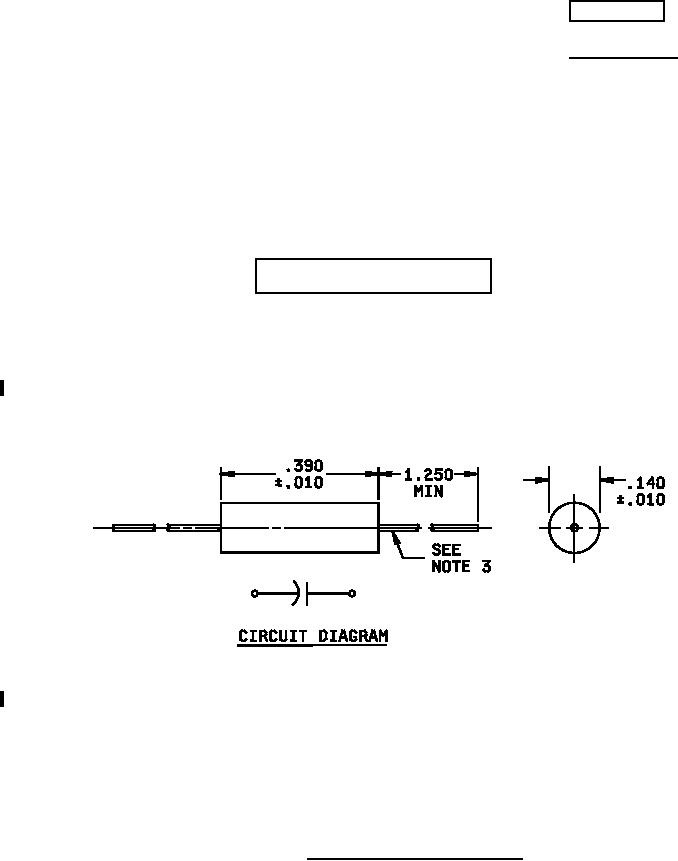

FIGURE 1. Styles CCR77 and CC77 capacitors.
AMSC N/A
FSC 5910
