INCH-POUND
MIL-PRF-20/27G
21 April 2011
SUPERSEDING
MIL-PRF-20/27F
21 June 2001
PERFORMANCE SPECIFICATION SHEET
CAPACITORS, FIXED, CERAMIC DIELECTRIC
(TEMPERATURE COMPENSATING),
ESTABLISHED AND NON-ESTABLISHED RELIABILITY,
STYLES CCR75 AND CC75
CC75 is inactive for new design after
6 June 1984. Use CCR75.
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the capacitors described herein
shall consist of this specification sheet and MIL-PRF-20.
Inches
mm
.010
0.25
.090
2.29
.160
4.06
1.250
31.75
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Lead diameter shall be .016 (0.41 mm) +.005, -.001 (+0.13, -0.03 mm).
4. Lead length may be a minimum of 1.00 inch (25.4 mm) long for use in
tape and reel packaging, when specified in the ordering data.

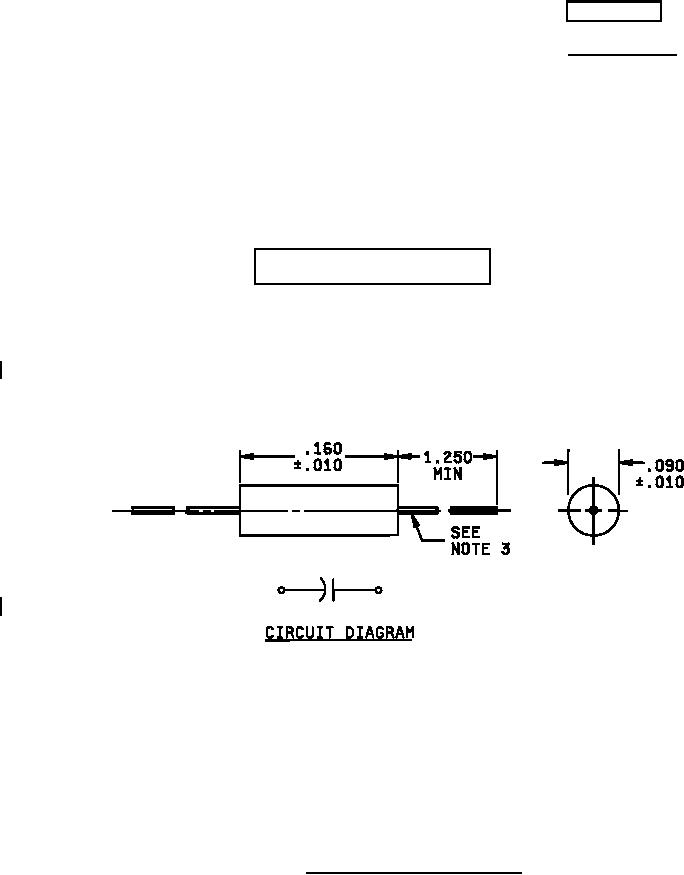

FIGURE 1. Styles CCR75 and CC75 capacitors.
AMSC N/A
FSC 5910
