MIL-PRF-19978/2E
TABLE I. Style CQ20 capacitors - Continued.
DC voltage
Case dimensions 2/
Part or identifying
Capacitance
Terminal
Capacitance
L
D
rating (see
number (PIN) 1/
tolerance
identification
±.062
±.031
figure 2)
µF
Volts
Inches
Inches
CQ20-1KT222-1
12,500
0.0022
J, K
A,C
3.250
1.031
CQ20-1KT332-1
12,500
0.0033
J, K
A,C
3.750
1.031
CQ20-1KT472-1
12,500
0.0047
J, K
A,C
3.750
1.031
CQ20-1KT682-1
12,500
0.0068
J, K
A,C
3.250
1.344
CQ20-1KT103-1
12,500
0.010
J, K
A,C
3.750
1.344
CQ20-1KT153-1
12,500
0.015
J, K
A,C
4.750
1.344
CQ20-1KT223-1
12,500
0.022
J, K
A,C
5.250
1.344
CQ20-1KU471-1
15,000
0.00047
J, K
A,C
2.750
.750
CQ20-1KU681-1
15,000
0.00068
J, K
A,C
2.750
.875
CQ20-1KU102-1
15,000
0.0010
J, K
A,C
3.250
.875
CQ20-1KU152-1
15,000
0.0015
J, K
A,C
3.250
.875
CQ20-1KU222-1
15,000
0.0022
J, K
A,C
3.250
1.031
CQ20-1KU332-1
15,000
0.0033
J, K
A,C
3.250
1.344
CQ20-1KU472-1
15,000
0.0047
J, K
A,C
3.250
1.344
CQ20-1KU682-1
15,000
0.0068
J, K
A,C
3.750
1.344
CQ20-1KU103-1
15,000
0.010
J, K
A,C
4.250
1.344
CQ20-1KU153-1
15,000
0.015
J, K
A,C
5.250
1.344
1/ Complete part number shall include symbols to indicate terminal and capacitance tolerances.
2/ See table III for metric equivalents.

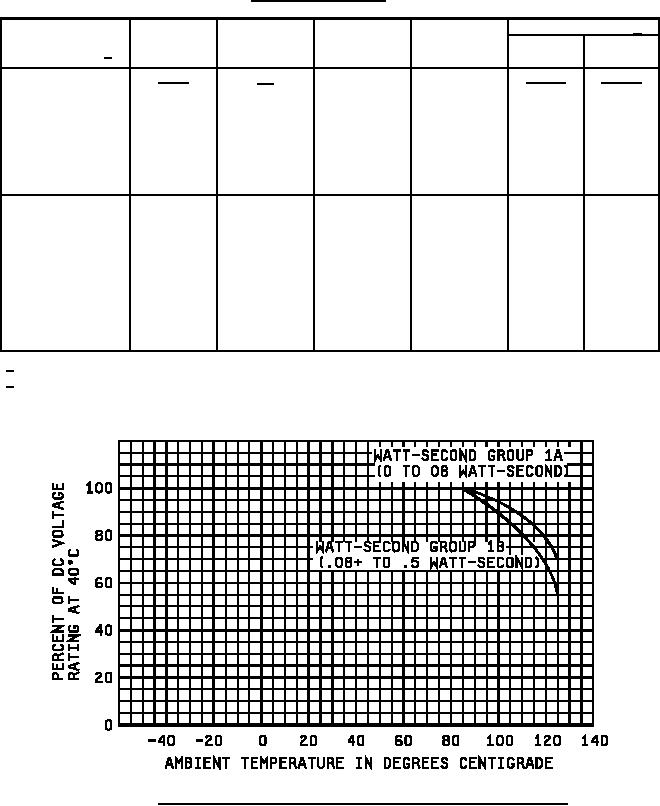

FIGURE 2 .Voltage derating for high ambient test temperature (characteristic K).
