INCH-POUND
MIL-PRF-14409/5G
4 December 2013
SUPERSEDING
MIL-PRF-14409/5F
7 March 2007
PERFORMANCE SPECIFICATION SHEET
CAPACITORS, VARIABLE (PISTON TYPE,
TUBULAR TRIMMER), STYLE PC39
This specification sheet is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-PRF-14409.
Inches
mm
.005
0.13
.016
0.41
.020
0.51
.031
0.79
.080
2.03
.094
2.39
.125
3.18
.167
4.24
.171
4.34
.175
4.45
.191
4.85
.195
4.95
.281
7.14
.312
7.92
NOTES:
1.
Dimensions are in inches.
2.
Metric equivalents (to the nearest 0.01 mm) are given for general information only and are based upon
1 inch = 25.4 mm.
3.
Unless otherwise specified, tolerance is ±.016.
4.
The flat on the mounting bushing shall extend to the mounting surface of the shoulder.
5.
The turret cap shall be soldered to the cylinder with high temperature solder having minimum melting point
of 232°C.
6.
For dimension A see table I.

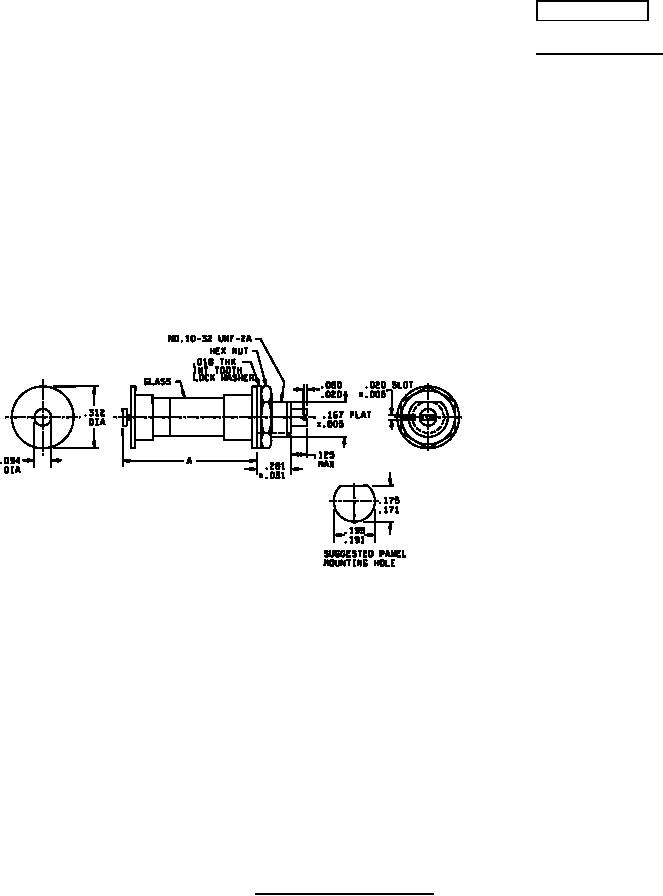

FIGURE 1. Dimensions and configuration.
AMSC N/A
FSC 5910
