MIL-PRF-14409/18D
Inches
mm
.005
0.13
.015
0.38
.020
0.51
.030
0.76
.031
0.79
.062
1.57
.109
2.77
.125
3.18
.14
3.5
.188
4.78
.219
5.56
.234
5.94
.250
6.35
.280
7.11
.281
7.14
.297
7.54
.312
7.92
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are for information only.
3. Unless otherwise specified, tolerance is ±.016 (0.41 mm).
4. Solder, if used, shall be high temperature solder having a melting point of 300°C +50°C, -5°C.

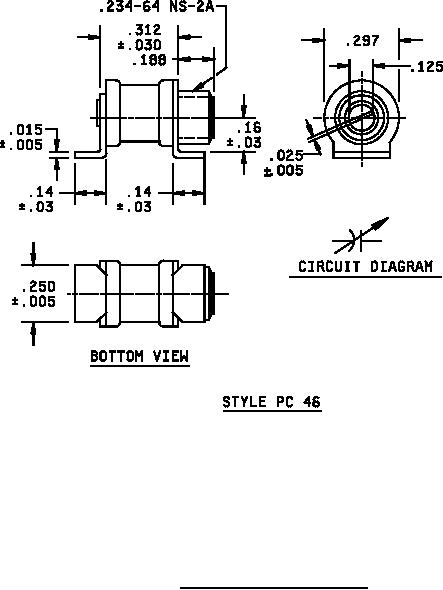

FIGURE 1. Dimensions and configurations - Continued.
REQUIREMENTS:
Dimensions and configuration: See figure 1 and table I.
DC voltage rating: See table I.
Construction: Alumina ceramic, O-ring sealed.
Dielectric: Air.
Capacitance range: See table I.
