MIL-PRF-14409/16E

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for general information only.

3. Metric equivalents are in parentheses.

4. Unless otherwise specified, tolerance is �.016 (0.41 mm).

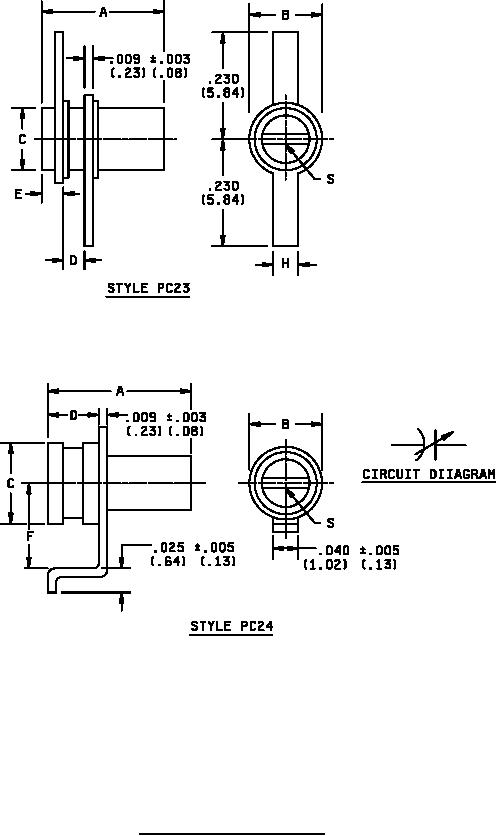

FIGURE 1. Dimensions and configurations - Continued.
