INCH-POUND
MIL-PRF-14409/1D
4 December 2013
SUPERSEDING
MIL-PRF-14409/1C
7 March 2007
PERFORMANCE SPECIFICATION SHEET
CAPACITORS, VARIABLE (PISTON TYPE,
TUBULAR TRIMMER), STYLE PC35
This specification sheet is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-PRF-14409.
Inactive for new design after 9 June 1969
Inches
mm
.005
0.13
.016
0.41
.020
0.51
.062
1.57
.080
2.03
.112
2.84
.225
5.72
.230
5.84
.234
5.94
.250
6.35
.251
6.38
.255
6.48
.312
7.92
.375
9.53
1.50
38.10
NOTES:
1. Dimensions are in inches.
2. Metric equivalents (to the nearest 0.01 mm) are given for general information only and are based upon
1 inch = 25.4 mm.
3. Unless otherwise specified, tolerance is ±.016.
4. There shall be a minimum of one and one-half turns of AWG size 22 wire around the body. These turns of wire
shall be completely soldered to the body.
5. The flat on the mounting bushing shall extend to the mounting surface of the shoulder.
6. The piston shall not extend beyond the end of the tube at the maximum rated capacitance position.
7. For dimensions A and B see table I.

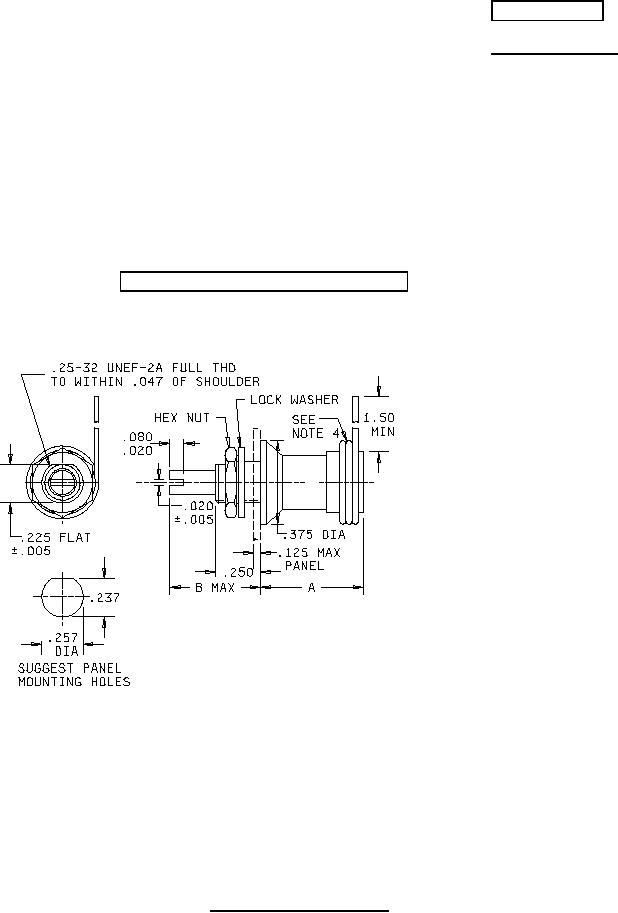

FIGURE 1. Dimensions and configuration.
AMSC N/A
FSC 5910
