INCH-POUND
MIL-PRF-123/10D
3 March 2006
SUPERSEDING
MIL-PRF-123/10C
1 September 2005
PERFORMANCE SPECIFICATION SHEET
CAPACITORS, FIXED, CERAMIC DIELECTRIC,
(TEMPERATURE STABLE AND GENERAL PURPOSE),
HIGH RELIABILITY, NONLEADED, STYLE CKS51
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-PRF-123.
Inches
mm
Dimensions
L ± .015 W ± .015
S ± .010
.010
0.25
T
.015
0.38
Min
Max
.020
0.51
.050
1.27
.080
.050
.020
.055
.020
.055
1.40
.080
2.03
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Dimensions and tolerances are for bare chips. For solder coated terminations, add .020 inch to the
positive length tolerance and .015 inch to the positive width and thickness tolerances.

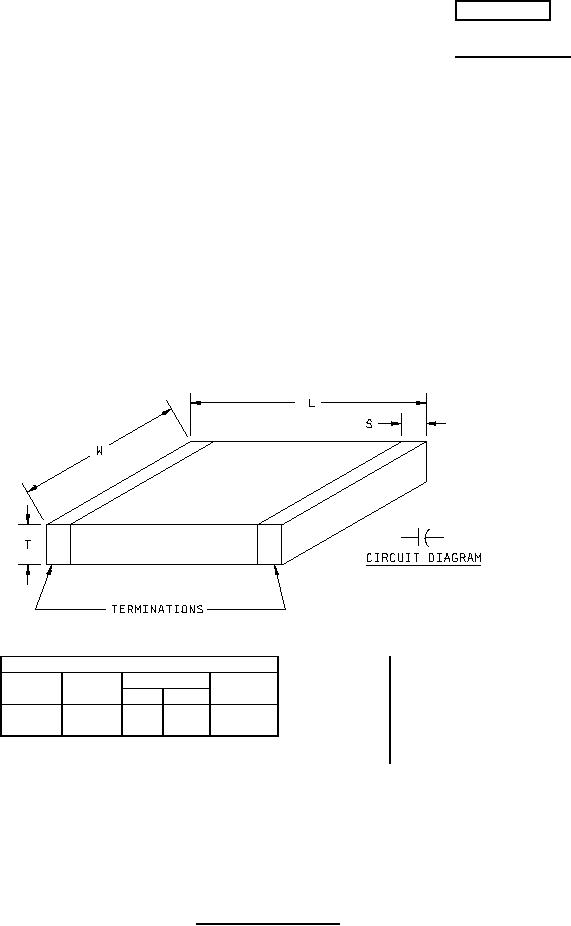

FIGURE 1. Style CKS51 capacitors.
