INCH-POUND
MIL-C-5/18F
29 March 2013
SUPERSEDING
MIL-C-5/18E
18 June 2001
MILITARY SPECIFICATION SHEET
CAPACITORS, FIXED, MICA DIELECTRIC, STYLES CM04, CM05
CM06, CM07, CM08, CM09, CM10, CM11, CM12, AND CM13
INACTIVE FOR NEW DESIGN AFTER
21 DECEMBER 1970. USE MIL-PRF-39001/5.
This specification sheet is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the capacitors described
herein shall consist of this specification sheet and MIL-C-5.
STRAIGHT LEAD
CRIMPED LEAD
Styles CM04, CM05,
Styles CM09, CM10
CM06, CM07, & CM08
CM11, CM12, & CM13
NOTES:
1. Dimensions are in inches (see table I).
Inches
mm
2. Millimeters are in parentheses (see table I).
.016
0.41
3. Metric equivalents are given for general information only.
.062
1.57
1.00
25.40
4. Magnitude of nicks, pinches or die marks appearing on the leads shall not
exceed 1/5 of the wire diameter.
5. The "D" dimension may not be solderable as it may be covered by
a clear epoxy or resinous coating.
6. No resinous phenolic or clear epoxy coating on leads below crimp.

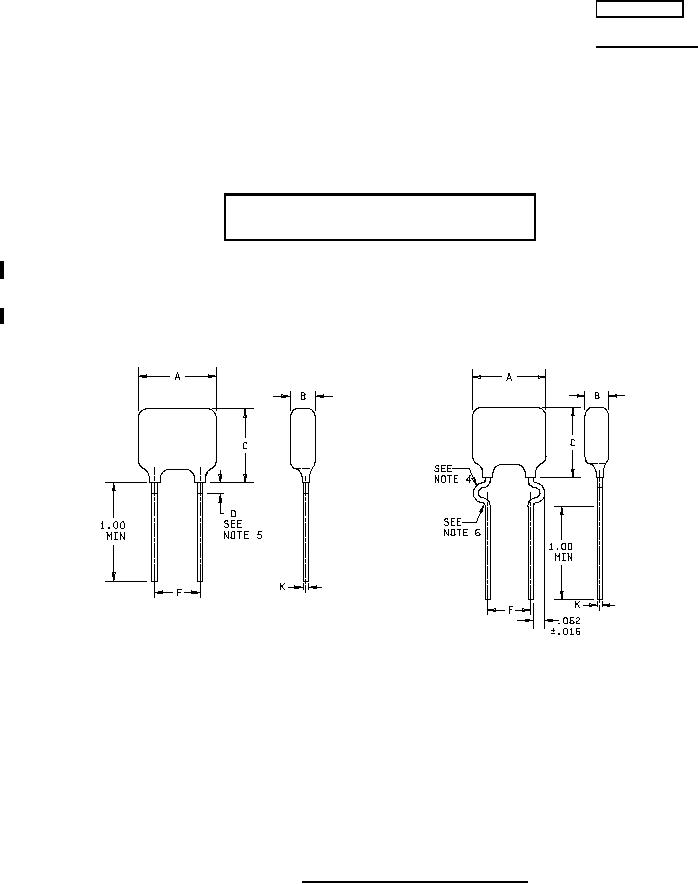

FIGURE 1. Styles, straight lead and crimped lead.
