MIL-C-19978/21A
TABLE I. Style CQ11 capacitors - Continued.
1/ Complete part number shall include an additional symbol to indicate circuit.
2/ See table II for metric equivalents.

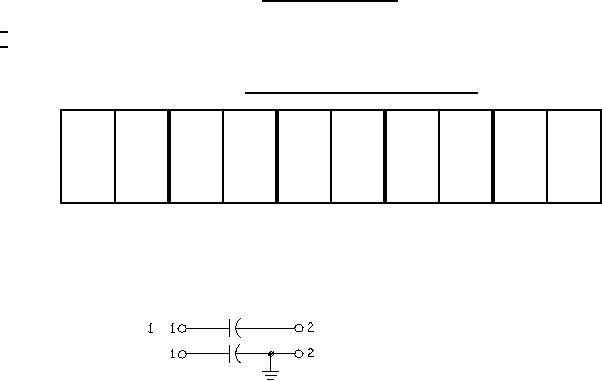

TABLE II. Millimeter equivalent of decimal inches.
Inches
mm
Inches
mm
Inches
mm
Inches
mm
Inches
mm
0.010
0.25
0.670
17.02
0.896
22.76
1.156
29.36
1.844 46.84
0.015
0.38
0.708
17.98
1.000
25.40
1.333
33.86
1.906 48.41
0.020
0.51
0.750
19.05
1.083
27.51
1.344
34.14
2.094 53.19
0.400
10.16
0.771
19.58
1.094
27.79
1.396
35.46
2.156 54.76
0.562
14.27
0.833
21.16
1.146
29.11
1.406
35.71
Case material: Nonmagnetic (screwneck and end seal may be of magnetic material).
Dielectric material: Paper and polyethelene terephthalate (K).
Terminals: Axial-wire lead (see figure 1).
Circuit diagram:
3
Rated voltage: See table I.
Rated temperature: -65° to +125°C.
Capacitance (nominal): See table I.
Capacitance tolerance: ±10 percent (symbol K).
Vibration grade: 3.
Dissipation factor (DF) (max): 1.0 percent.
Seal: Method 112 of MIL-STD-202, test condition letter A.
Barometric pressure, qualification only: In accordance with MIL-PRF-19978.
Test points:
Circuit diagram 1: Between terminals and case.
Circuit diagram 3: Between ungrounded terminal and case.
Insulation resistance (IR):
Terminal to terminal: See table III.
3
