MIL-C-19978/20A
TABLE II. Millimeter equivalent of decimal inches.
Inches
mm
Inches
mm
Inches
mm
Inches
mm
0.010
0.25
0.670
17.02
1.125
28.58
2.062
52.37
0.015
0.38
0.688
17.48
1.312
33.32
2.125
53.98
0.020
0.51
0.750
19.05
1.375
34.93
2.562
65.07
0.235
5.97
0.812
20.62
1.562
39.67
2.625
66.68
0.312
7.92
0.875
22.23
1.625
41.28
0.400
10.16
1.000
25.40
1.812
46.02
0.562
14.27
1.062
26.97
1.875
47.63
Case material: Nonmagnetic (end seal may be of magnetic material).
Dielectric material: Paper and polyethelene terephthalate (K).
Terminals: Axial-wire lead (see figure 1).

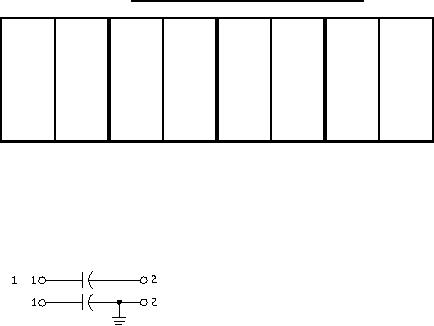

Circuit diagram:
3
Rated voltage: See table I.
Rated temperature: -65° to +125°C.
Capacitance (nominal): See table I.
Capacitance tolerance: ±10 percent (symbol K).
Vibration grade: 3.
Dissipation factor (DF) (max): 1.0 percent.
Seal: Method 112 of MIL-STD-202, test condition letter A.
Barometric pressure, qualification only: In accordance with MIL-PRF-19978.
Test points:
Circuit diagram 1: Between terminals and case.
Circuit diagram 3: Between ungrounded terminal and case.
Insulation resistance (IR):
Terminal to terminal: See table III.
