INCH-POUND
MIL-C-18312/2D
28 February 2013
SUPERSEDING
MIL-C-18312/2C
27 August 2001
MILITARY SPECIFICATION SHEET
CAPACITORS, FIXED, METALLIZED (PAPER-PLASTIC, OR PLASTIC FILM)
DIELECTRIC, DIRECT CURRENT
(HERMETICALLY SEALED IN METAL CASES),
STYLE CH09
This specification sheet is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-C-18312.
INACTIVE FOR NEW DESIGN, AFTER
8 JANUARY 1970. USE MIL-PRF-39022/1.
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. See table I for additional dimensions.
4. Number 24 AWG wire for case diameters of .227 inch (5.77 mm) and under. Number 22 AWG for case
diameters .267 inch (6.78 mm) thru .344 inch (8.74 mm) and 20 AWG wire for case diameters .432 inch (10.97
mm) and over.
5. Plastic insulating sleeve shall be transparent. Marking shall be applied to the capacitor case.
6. Plastic insulating sleeve shall extend beyond the capacitor body, but shall not exceed .062 inch (0.79 mm) on
either end. Insulating sleeve thickness shall not exceed .016 inch (0.41 mm).

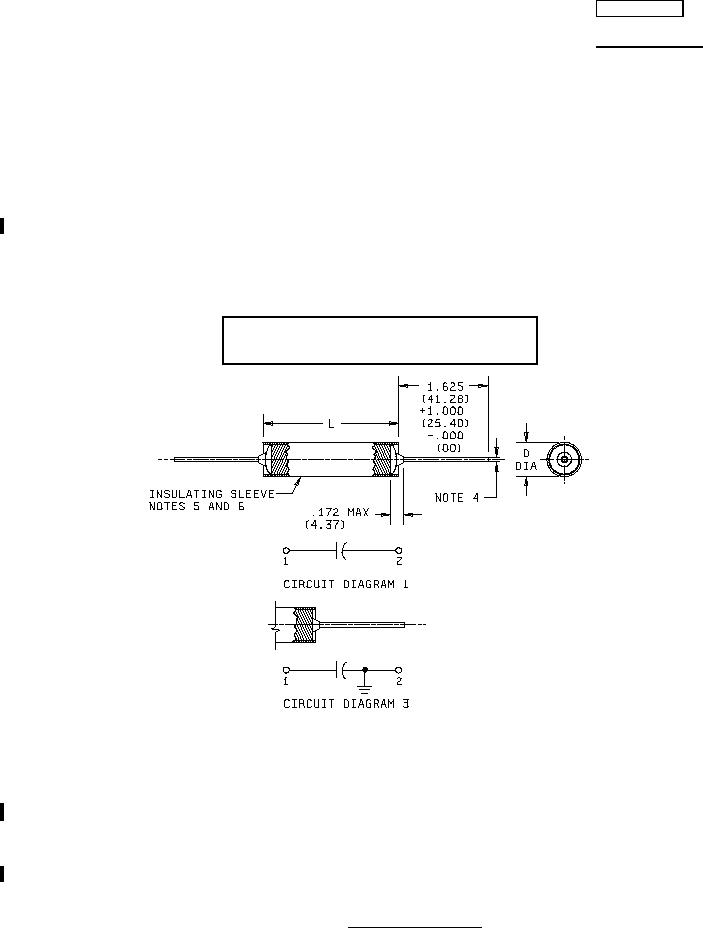

FIGURE 1. Style CH09 capacitors.
AMSC N/A
FSC 5910
