INCH-POUND
MIL-C-11272/1E
4 February 2008
SUPERSEDING
MIL-C-11272/1D
7 February 2003
MILITARY SPECIFICATION SHEET
CAPACITORS, FIXED, GLASS DIELECTRIC
STYLE CY10
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
*
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-C-11272.
*
INACTIVE FOR DESIGN AFTER
7 JAN 1970. USE MIL-PRF-23269/1.
Inches
mm
.001
0.03
.004
0.10
.016
0.41
.020
0.51
.031
0.79
.047
1.19
.078
1.98
.172
4.37
.344
8.74
1.125
28.58
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.

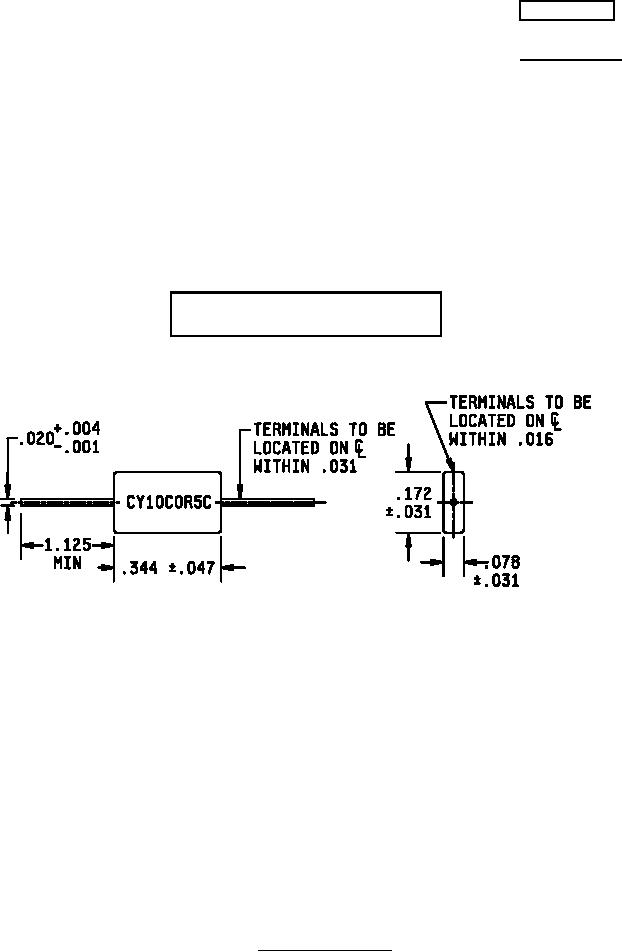

FIGURE 1. Style CY10 capacitors.
AMSC N/A
FSC 5910
